Sysolution Two-in-ONE Video Processor S80S
Product introduction:
Sysolution S80S is equipped with 4K-60Hz HD input, 2.08 million pixels and 3.5 -inch HD screen. It supports multiple layout options with 4 frames, EDID management and multi-core image scaler. Caution: against static and water.
Product Picture:
Front panel
Rear panel
Functions:
1. 4K-60Hz high-definition input: multiple 4Kx2K@60Hz input interfaces, more detailed performance and clearer display;
2. 4 kinds of screen layout options: S80 can output 4 layers, a variety of layout options;

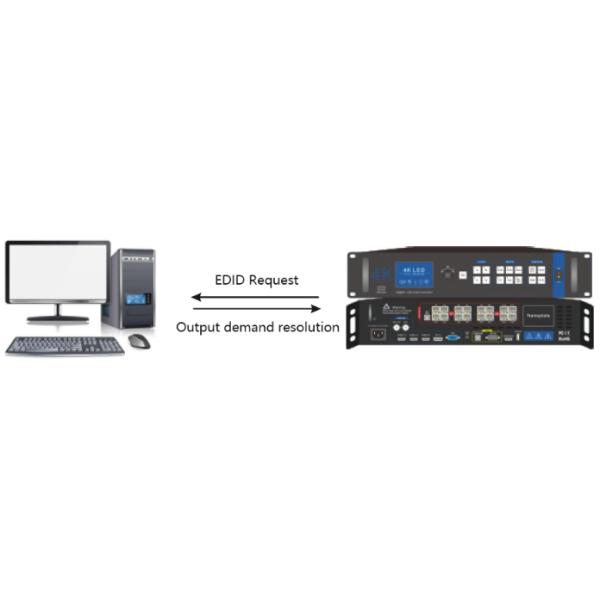

3. EDID management: HDMI, DP, VGA interfaces have custom EDID function, which solves the problem of abnormal resolution and display ratio of the source end, and makes the display effect more perfect;
4. Dual-core image scale: It can be divided into 2 groups for custom resolution, the resolution of each group can output different resolutions, and the loading area is much larger than the conventional one;

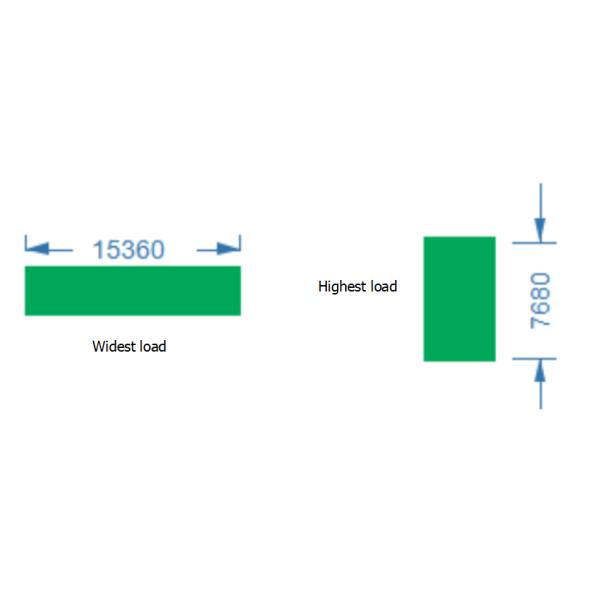

5. 20.8 million pixel output: S80 single network port with a load of 650,000, 32 network ports with a total of 20.8 million pixels, making the market adaptable, up to 15360 pixels in length, up to 7680 pixels;
6. USB player: S80 supports optional USB player function, built-in high-definition hardware decoding core, has powerful video decoding ability, can play video and pictures, and can set hold time；
7. Ultra HD Blu-ray BT.2020 color gamut: S80 supports a new generation of color gamut space, and the color performance of Ultra HD Blu-ray BT.2020 is better;
8. Audio synchronization switching: S80 input signal source can be associated with HDMI, DP, transmission without delay, no noise;
9. Support monitoring output;
10. Support SDI or USB input;
11. 3.5-inch high-definition LCD screen;
12. Support WiFi control;
13. Support time lock and card lock;
14. Support parameter readback.
Interface Definition:

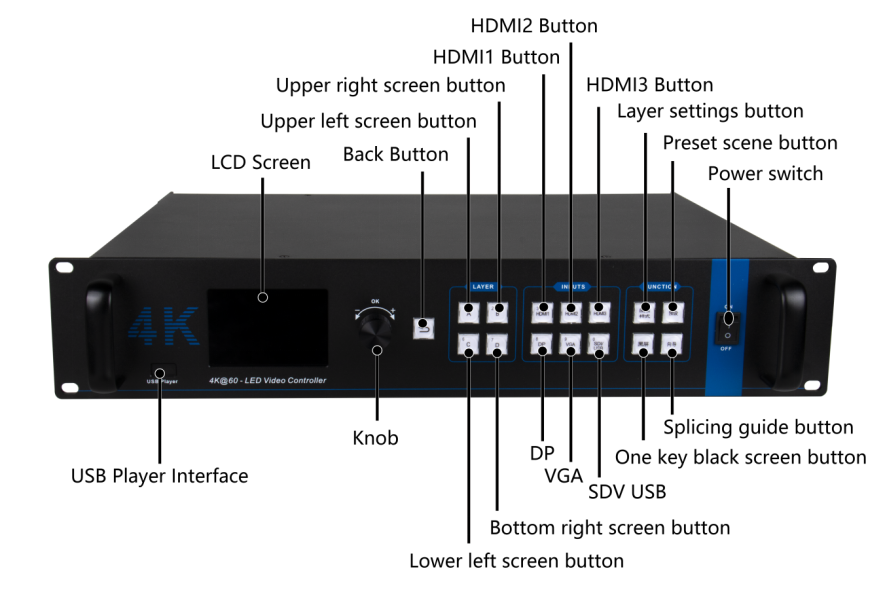

Front Panel
| No | Button | Description |
| 1 | USB Player | To play the picture or video file of the U disk, you need to store the picture or video in the root directory of the U disk. |
| 2 | LCD screen | Displays menus and current information. |
| 3 | Knob | "Confirmation and Adjustment". Press down is the OK key, enter the menu or the next-level menu key, and confirm the function. Rotate left and right for + "plus" - "minus" operation, you can adjust the menu position or adjust the parameter value to decrease. |
| 4 | Return | Menu exit key, or return to the previous menu. |
| 5 | Layer | - A, B, C, D keys: four layer keys, corresponding to the upper left, upper right, lower left, and lower right four big pictures, no preview mode can not be adjusted, other modes can be set freely.
|
| | Input Source | - HDMI1 HDMI2 HDMI3, corresponding to the HDMI1 HDMI2 HDMI3 video input interface on the rear panel respectively.
- DP key: Display Port input interface.
- VGA key: VGA input source key, reused as "" when U disk is playing, stop playing.
- USB key: external media playback, U disk playback input source.
|
| 7 | Functional area | The function key area includes screen display mode, preset recall, one-key black screen, and output resolution, which can quickly realize the operation of each function. - Layer settings key: Quick access to layer settings.
- Preset key: Preset scene loading shortcut key. Press this key in the default menu state to call up the preset scene list, and then cooperate with the menu function key to call up the preset scene.
- Black screen key: This key is a composite key, which can be set to freeze or black screen.
- Splicing wizard key: can quickly enter the splicing wizard.
|
| 8 | Switch | Front AC power switch. |
Real Panel
| Input Interface |
| Interface | Quantity | Description |
| AC power connector | 1 | 100~240VAC 0.1A/50~60Hz |
| LED USB1,2 | 2 | It is used to connect to the computer, and use the Rgbsky_LED system debugging software to set the parameters of the main control part and the receiving card, etc. |
| HDMI | 3 | High-definition video input, using HDMI-A standard interface, input video supports HDMI1.3 standard and VESA standard. Commonly used to connect desktop computers and HDMI high-definition players. |
| DP | 1 | Display port interface |
| VGA | 1 | Maximum support for 1920x1080@60Hz resolution video source input, backward compatible. |
| Output Interface |
| Interface | Quantity | Description |
| Gigabit Ethernet output | 32 | 32 Gigabit Ethernet ports, each with 650,000 pixels. |
| AUDIO OUT | 1 | 3.5mm audio port Support audio output channel: 3.5mm audio interface, HDMI, USB |
| Control Interface |
| Interface | Quantity | Description |
| RS232 | 1 | The serial communication connector is used for engineering testing, program programming, and host computer software control. The communication baud rate is 115200bps. |
| COMM-USB | 1 | It is used to connect to the computer, and use the Rgbsky_LED system debugging software to set the parameters of the main control part and the receiving card, etc. |
| UPGRADE | 1 | Debug port |
Specifications:
| HDMI2.0 Video Input |
| Quantity | 1 |
| Interface type | HDMI-A socket |
| Standard signal | DVI1.0/HDMI1.3 backward compatible VESA standard |
| Supported resolution | 3840x2160@60Hz |
| DP1.2 Video Input |
| Quantity | 1 |
| Interface type | DP socket |
| Standard signal | DP1.2 backward compatible |
| Supported resolution | 3840x2160@60Hz |
| HDMI1.4 Video Input |
| Quantity | 2 |
| Interface type | HDMI-A socket |
| Standard signal | HDMI1.4 backward compatible |
| Supported resolution | 3840x2160@30Hz |
| VGA Video Input |
| Quantity | 1 |
| Interface type | DB15 socket |
| Standard signal | Analog RGB |
| Supported resolution | VESA standard 1920x1200 |
| USB Player(option) |
| Quantity | 1 |
| Interface type | USB-A |
| Standard signal | USB2.0 |
| Supported format | rm,rmvb,mp4,mov,mkv,wmv,avi,3gp,jpg,bmp,png |
| Supported resolution | Video 1080P backward compatible Picture 4096 x 2160 backward compatible |
| SDI Input(option) |
| Quantity | 1 |
| Interface type | BNC |
| Standard signal | SD-SDI,HD-SDI,3G-SDI |
| Supported resolution | 1080p 60/720p 60 1080i 1035i 625/525 line |
| LED Video Output |
| Interface type | RJ45 |
| Quantity | 32 |
| Transmission | 1000BaseTX |
| Transmission resolution | 20.8 million pixels; the widest resolution is 15360 pixels; the highest resolution is 5760 pixels. |
| Transmission wire | Cat5e network cable |
| Transmission distance | Cat5e network cable≤140M；Cat6e network cable≤170M |
| Check way | CRC check |
| Support receiving card | D70 and above series receiving cards and R90 multi-function cards |
| Audio Output |
| 3.5 Headphone jack quantity | 1 |
| Output power | 80DB |
| Output channel | left and right channels |
| Support audio channel | HDMI1, HDMI2,HDMI3,DP,USB |
| LED-USB Communication |
| Interface | Type B |
| Communication method | USB/RS232 |
| Probe receive card | Multiple receiving cards can be probed simultaneously |
| Brightness adjustment | Ensure the gray level and adjust the brightness of the receiving card |
| Firmware update | Support sending card and receiving card online update |
| Bit error rate detection | Quality of network cables between receiving cards and fault diagnosis |
| Serial Communication |
| Interface | DB9-female |
| Communication method | RS232 |
| Function | Switch signals, presets, brightness, and more |
| WiFi communication |
| Interface | Wireless |
| Communication method | WiFiI5 |
| Function | Switch signals, presets, brightness, and more |
Working Parameters:
| Function | Parameters |
| Input power | 100VAC-240VAC 50/60Hz |
| Maximum power | 65W |
| Working temperature | 0℃~+45℃ |
| Dimensions | Body size:335 x 440 x 88 mm Out packing size:540 x 450 x 190 mm |
| Net weight | 6.8Kg |
Cautions:
1. Commissioning and installation must be completed by professionals;
2. Non-professionals are not allowed to disassemble the machine for maintenance;
3. Pay attention to anti-static;
4. Pay attention to waterproofing.
